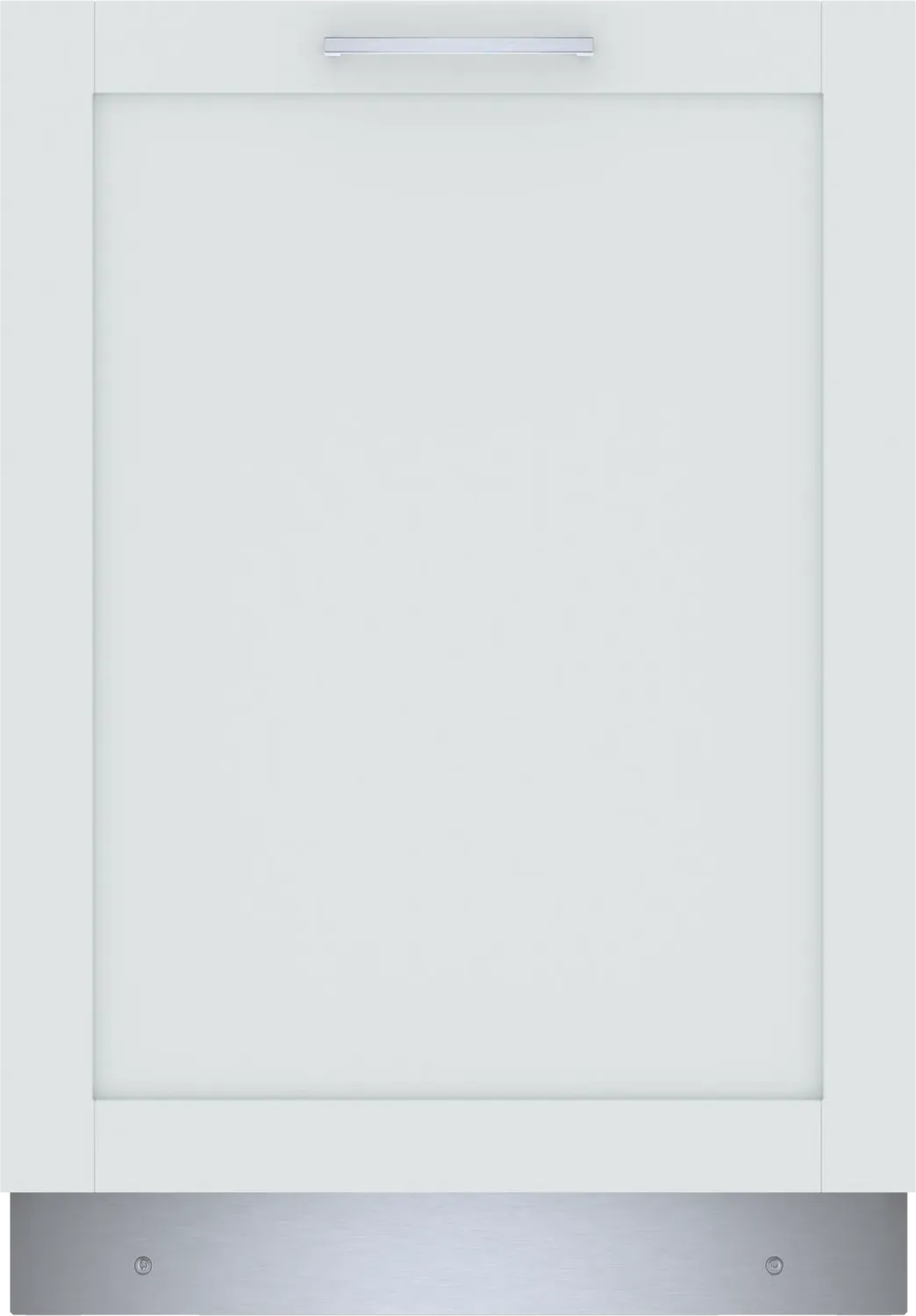

BOSCH 800 SERIES DISHWASER

Patented CrystalDry™
technology transforms
moisture into heat to get
dishes, including plastics,
60% drier.1
Features & Benefits
42 dBA: dishwasher runs
quietly so your kitchen
conversations aren’t
interrupted.
The Flexible 3rd Rack with
fold down sides adds 30%
more2 loading area, perfect
for utensils and ramekins.
Connect to WiFi and
enable Home Connect™
to reorder dish tabs via
Amazon3, plus get alerts
when dishes are done.
The Favorite button allows
you to easily access your
preferred cycle/option
combination with 1 touch.
The AquaStop®
leak
protection system contains
leaks through a precisely
engineered system, giving
you the ultimate peace
of mind whether you are
away or at home.
Technical Details
Watts 1440 W
Current 12 A
Volts 120 V
Frequency 60 Hz
Power cord full length 67"
Power cord install length
from edge of unit when
facing the door
Left – 47 1/4"
Right – 47 1/4"
Minimum water pressure 14 lb/sin
Length outlet hose 74 3/4"
Dimensions & Weight
Overall appliance
dimensions (HxWxD)
34 1/16" x 23 9/16"
x 21 5/8"
Required cutout size
(HxWxD)
34 1/16" x 24" x
24"
Adjustable feet Yes
Net weight 105 lbs
Accessories—Optional
Junction Box SMZPCJB1UC
Drain Hose Extension Kit SGZ1010UC
Dishwasher Accessory
Kit
SMZ5000
Flexible Silverware
Basket
SMZ4000UC
Anti-Tarnish Silverware
Cassette
SMZ5002UC
Edge Protector + Power
Cord Clip Install Kit
SMZEPCC1UC
Flexible 3rd Rack SMZCD200UC
Softener Salt SGZ9091UC
Stainless Steel Straight
Bosch Bar Handle
SMZ1007UC
General Properties
Number of wash cycles 6
Number of options 6
dBA 42
Wash system PrecisionWash®
Drying system CrystalDry™
Third rack Flexible 3rd Rack
Rack adjustability Rackmatic®
Tub material Stainless Steel
Control type Touch Control
Concealed water
heating element
Yes
Leak protection system 24/7 AquaStop®
Plus
Home Connect®
(WiFi enabled)
Yes
NSF®
-certified4 sanitize
option
Yes
Water softener Yes
Five-level wash Yes
Child Lock button
suspension
No
Anti-Fingerprint Finish N/A
Special features CrystalDry™
Option, InfoLight®,,
Stainless Steel Toe
Kick
Efficiency
Water usage per cycle 3.5 gal
ENERGY STAR®
certified No
Total annual energy
consumption
269 kWh
Capacity
Number of place settings 15
